130RPM Electric Sliding Gate Opener Motor 24V DC with Glass fiber Worm Gear

Cirolla Motor Co.,Ltd

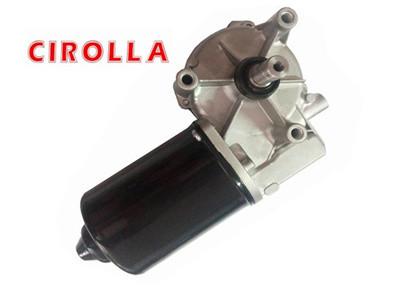

130RPM Electric Sliding Gate Opener Motor 24V DC with Glass fiber Worm Gear

  • 1
  • 2
  • 3

Brand Name : CIROLLA

Model Number : 8030

Certification : CE/CCC/ SGS

Place of Origin : Zhejiang, China

MOQ : 500PCS

Price : Negotiation

Payment Terms : T/T,L/C, Western Union

Supply Ability : 50,000pcs/month

Delivery Time : 25-30days

Packaging Details : Standard,10pcs/carton, weight 1.5kg

Contact Now

130RPM Electric Sliding Gate Opener Motor 24V DC with Glass fiber Worm Gear

Quick Detail:

Function: Control Type: Worm gear reduction: 24VDC,50W

Construction: Permanent Magnet Structure and Working Principle: Brush

Operating Speed: High Speed Gear material: Glass fiber

Application: Doors,Universal, Industrial, Household Appliances, machine power system

Description:

Worm gear Motor is power supply of Electric Sliding Gate Motor,A gate operator is a mechanical device used to open and close a gate, such as one at the end of a driveway.As its name implies, a slide gate either slides on wheels from left to right or right to left, not unlike many department store automatic doors. Electric Slide gate operators are commonly installed at the end of the gate in the closed position but can also be installed by the end of the gate in the open position.

Specifications:

Motor Performance:

Type

Brush

Voltage

24VDC

Power

≥50W

No load Speed

125rpm

No load Current

0.6A

On load Speed

100rpm

On load Current

2.8A

Work torque

3Nm

Stall torque

15Nm

Gear material

Glass fiber

Protection class

IP44

Weight

1.5kg

Characteristic curves of motor:

130RPM Electric Sliding Gate Opener Motor 24V DC with Glass fiber Worm Gear

State

Voltage

Current

Pin

Torque

Speed

Pout

Eff

V

A

W

N.m

rpm

W

%

Speed_max

24.01

1.046

25.12

0.35

126.9

4.70

18.7

Eff_max

24.00

4.511

108.3

4.35

85.7

39.08

36.0

Pout_max

24.00

6.898

165.6

7.63

59.8

47.78

28.8

Torque_max

23.99

12.59

302.2

13.26

2.1

2.91

0.9

End

23.99

12.48

299.5

13.17

0.0

0.00

0.0

Applications:

This kind of brush gear dc motor can be widely used for Electric Sliding Gate Openers

130RPM Electric Sliding Gate Opener Motor 24V DC with Glass fiber Worm Gear

Competitive Advantage:

Courtesy light -Comes on automatically when the door is in use. The light will stay on for approximately 3 minutes, then turns off automatically.

Quiet Operation - No need to let the neighborhood know when you come and go!

Automatic Safety Reverse – Garage Ace sensors when someone or something is in the way, and reverses automatically.

Manual Override - Motor can be easily disengaged in the event of power failure for manual operation of door.

Handy Wall Switch - Door can be operated from switch on interior mounted control box independently of remote transmitter.

Automatic Run Time - If motor is activated while disengaged, the auto run time will turn motor off after 30 seconds

DIY Installation - Step-by-step instructions will guide you through installation. the opener can be installed on the left or right-hand side of the door.

Safe and Secure - High security rolling code transmitters. Two remotes supplied.

Outline drawings of motor:

130RPM Electric Sliding Gate Opener Motor 24V DC with Glass fiber Worm Gear
